Powered by: BI-Energy (Honda Gas Engine + Battery Powered)
42 ′ Platform Height / 48 ′6” Work Height / 25 ’ Horizontal Reach
Hydraulic Outriggers/Stabilizers
Electric Power to the Platform
Working Width: 12’ 6”
Basket Width: 4’ 7”
Minimum Weight: 3,990lbs
Overall Dimensions: (LxWxH) 18’3″x5’3″x6′7″
*1yr Factory Warranty (Parts & Labor) & 5yr Structural Warranty — Optional 2yr, 3yr & 4yr Warranties Available*
SEE ATTACHED SPEC SHEET IN PHOTOS!
Optional Upgrades :
A) Traction Drive/2WD Assist
B) AIR to Platform
C) WATER to Platform
NOT THE MODEL/CONFIGURATION YOU ARE LOOKING FOR?! WE CAN ORDER ANY MODEL YOU’D LIKE INQUIRE FOR MORE INFORMATION!
2013 Haulotte 3632T Tow Behind Man Lift
2019 Niftylift TM42TGE Tow Behind Man Lift
2024 Haulotte/Bil-Jax 55XA 4×4 Hybrid Self Propelled Man Lift
Powered By: Bi-Energy (Kohler Gas Engine – 26Hp & 24v DC Electric Battery Motor ) (4x 6V Batteries 260 Amp-Hr Batteries)
55′3″ Platform Height / 61′3″ Work Height / 33’5″ Horizontal Reach
Up and Over Height: 23’ 1”
Hydraulic Jib Length: 4’3” w/ 150° Vertical Motion
Lift Capacity: 500lbs
4×4
Four wheel Steer_
Gradeability: 45%
Hydraulic Outriggers/Stabilizers
-Self Leveling System and Self Leveling Platform
Electric Power, Air and Water to the Platform
Inboard 25 Amp Charger
Onboard 4,000W Generator (for charging battery system)
Integrated Forklift Pockets
Working Width: (LxW) 13’ 11” x12’9”
Turntable Rotation: 350° non-continuous
Basket Width: 5’
Minimum Weight: 6,000lbs
Overall Dimensions: (LxWxH) 21’2″x5’8″x6′9″
*18 Month Factory Warranty (Parts & Labor) & 5yr Structural Warranty
SEE ATTACHED SPEC SHEET IN PHOTOS!
AUTHORIZED HAULOTTE DEALER IN PARTS, SERVICE AND SALES!
NOT THE MODEL/CONFIGURATION YOU ARE LOOKING FOR?!
WE CAN ORDER ANY MODEL YOU’D LIKE INQUIRE FOR MORE INFORMATION!
2024 Haulotte/Bil-Jax 5533A Towable Man Lift
Powered by: 24v DC Electric Motor w/ 4x 6V 245 Amp-Hr Batteries
55′3″ Platform Height / 61′3″ Work Height / 33’5″ Horizontal Reach
Up and Over Height: 23’ 1”
Hydraulic Jib Length: 4’3” w/ 150° Vertical Motion
Lift Capacity: 500lbs
Hydraulic Outriggers/Stabilizers
-Self Leveling System and Self Leveling Platform
Electric Power, Air and Water to the Platform
Inboard 25 Amp Charger
Integrated Forklift Pockets
Hydraulic Surge Brakes (Trailer)
Working Width: (LxW) 14’8” x15’
Turntable Rotation: 350° non-continuous
Basket Width: 4’1”
Minimum Weight: 4.800lbs
Overall Dimensions: (LxWxH) 23’8″ x 5’7″ x 6′9″
*18 Month Factory Warranty (Parts & Labor) & 5yr Structural Warranty
SEE ATTACHED SPEC SHEET IN PHOTOS!
Ask About Optional Upgrades:
A) Platform Rotator – $2,050 B) Drive & Set (2WD Assist/Traction-Drive) – $6,050 C) Spare Tire & Mounting Kit – $725 D) Honda Gas Generator – $4,050
AUTHORIZED HAULOTTE DEALER IN PARTS, SERVICE AND SALES!
NOT THE MODEL/CONFIGURATION YOU ARE LOOKING FOR?!
WE CAN ORDER ANY MODEL YOU’D LIKE INQUIRE FOR MORE INFORMATION!
2024 Haulotte/Bil-Jax 6543A Towable Man Lift
Powered by: 24v DC Electric Motor w/ 4x 6V 245 Amp-Hr Batteries
65′ Platform Height / 71′ Work Height / 43’ Horizontal Reach
Up and Over Height: 24’ 2”
Hydraulic Jib Length: 4’3” w/ 170° Vertical Motion
Lift Capacity: 500lbs
Hydraulic Outriggers/Stabilizers
-Self Leveling System and Self Leveling Platform
Electric Power, Air and Water to the Platform
Inboard 25 Amp Charger
Integrated Forklift Pockets
Hydraulic Surge Brakes (Trailer)
Working Width: (LxW) 14’8” x15’
Turntable Rotation: 350° non-continuous
Basket Width: 4’1”
Minimum Weight: 7.700lbs
Overall Dimensions: (LxWxH) 24’ x 5’11″ x 7′
*18 Month Factory Warranty (Parts & Labor) & 5yr Structural Warranty
SEE ATTACHED SPEC SHEET IN PHOTOS!
Ask About Optional Upgrades:
A) Platform Rotator – $2,050
C) Spare Tire & Mounting Kit – $725
D) Honda Gas Generator – $4,050
AUTHORIZED HAULOTTE DEALER IN PARTS, SERVICE AND SALES!
NOT THE MODEL/CONFIGURATION YOU ARE LOOKING FOR?!
WE CAN ORDER ANY MODEL YOU’D LIKE INQUIRE FOR MORE INFORMATION!
2019 International 4300 Altec Material Handler Bucket Truck
2016 Haulotte 3947E Compact Electric Scissor lift
2018 NIFTYLIFT SD50DE Hybrid 4×4 Boom Man Lift
Bi-Energy (Kubota Diesel & DC Electric Battery)
Hour Meter Reads: 743 Hours
49′ 6” Platform Height / 56’ Work Height / 28’ 6” Horizontal Reach
Hydraulic Outriggers/Stabilizers
4×4
Electric Power to the Platform
Working Width: 14’ 5”
Basket Width: 3’ 7”
Minimum Weight: 5,950lbs
Overall Dimensions: (LxWxH) 18’4″x5’3″x7′3″
SEE ATTACHED SPEC SHEET IN PHOTOS!
NOT THE MODEL/CONFIGURATION YOU ARE LOOKING FOR?! WE CAN ORDER ANY MODEL YOU’D LIKE INQUIRE FOR MORE INFORMATION!

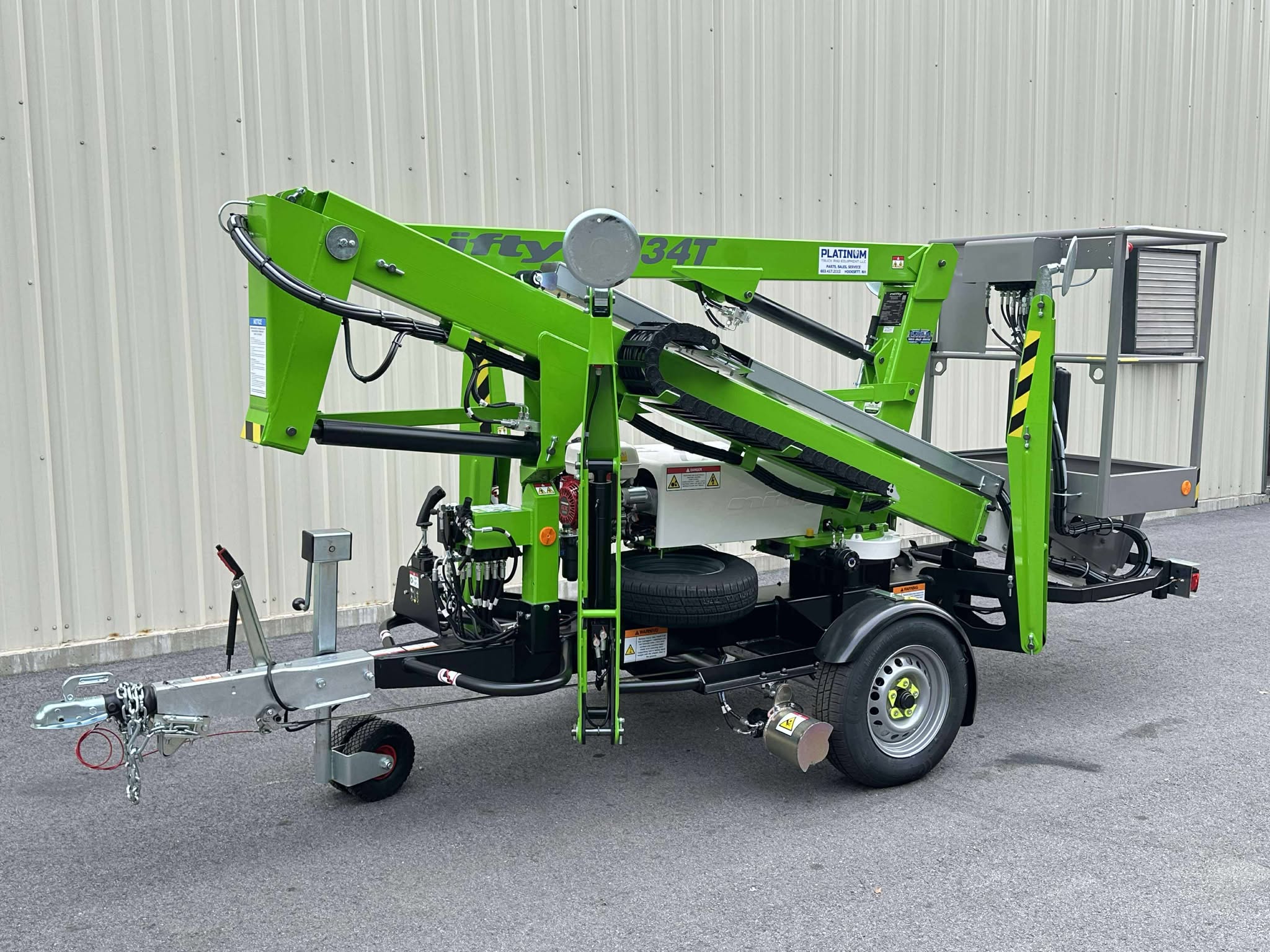

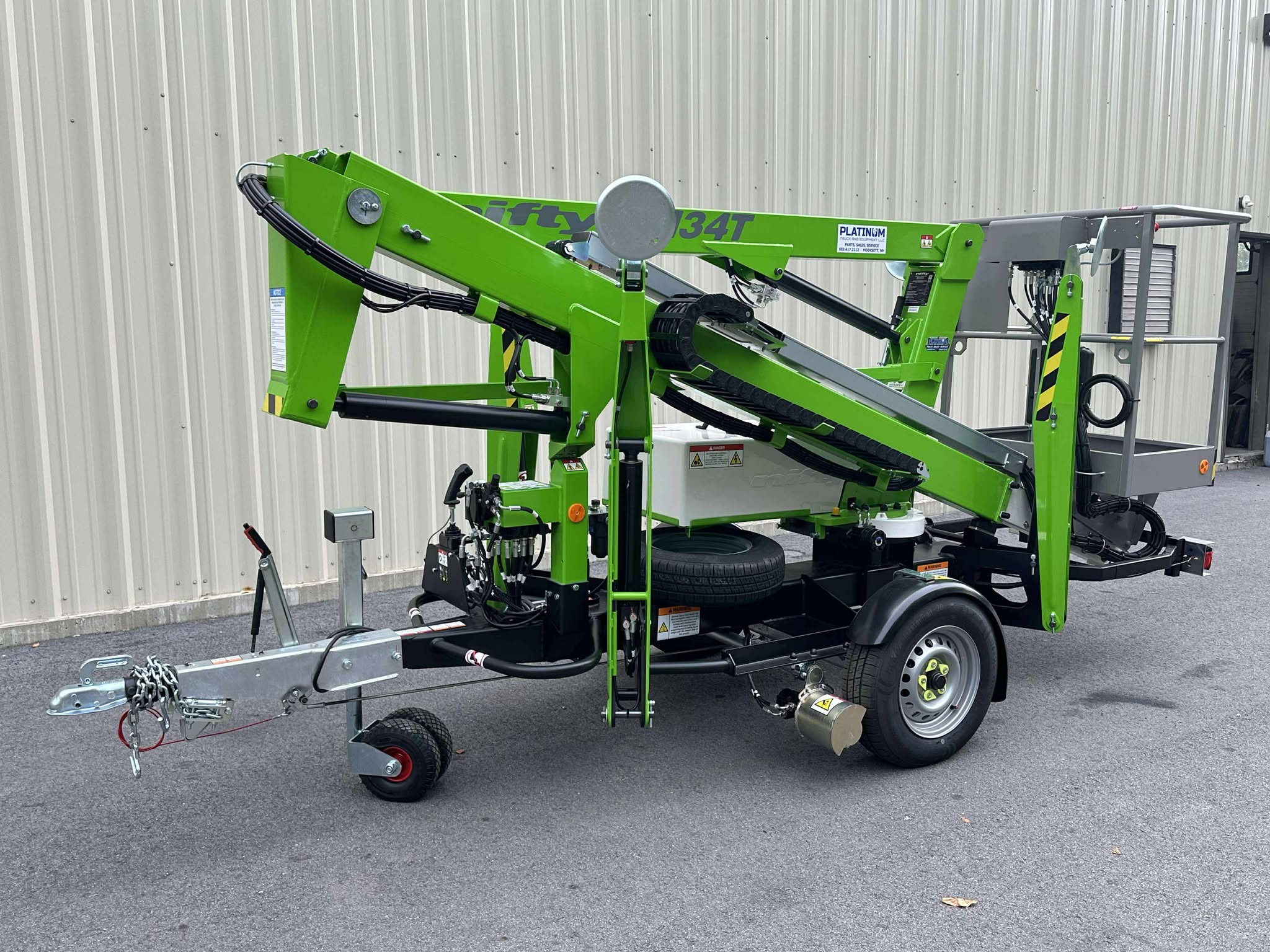

2019 Niftylift TM34MG Towable Man Lift
